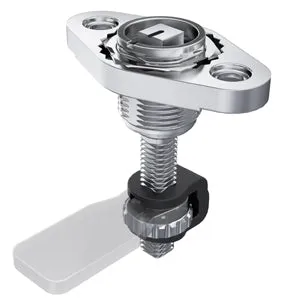

7-087 flush-mounted stainless steel compression latch with knurled wheel adjustment
- L=37mm.
- 6mm compression.
- Flush mounted version.
- Vibration-proof according to DIN EN 61373.
- RH/LH version.
- Indication of opened/closed position.
- H-dimension can be varied.
- Door thickness(s) max. 22mm.
- Door thickness(s) min. 1.8mm.
- Installation type: screw-on
For full datasheet see below.
Please contact us for large quantities.
